A Circular Chamber Filter Press (technically termed) stands as the core equipment and technological benchmark in modern industrial solid-liquid separation. Its precise nomenclature comprehensively reveals the machine's key characteristics:
Technical Nomenclature Breakdown:
"Circular": Refers to the geometric shape of the filter plates. This design ensures the most uniform pressure distribution, optimal sealing performance, and forms the structural foundation for stable high-pressure operation.
"Chamber": Denotes the construction principle of the filter cells—each filter plate itself features a recessed cavity (a chamber), eliminating the need for separate "frames." Two such plates pressed together form one sealed "filter chamber."
"Filter Press": Clarifies its working principle, which relies on external mechanical pressure as the driving force for separation.
The heart of the equipment is a series of circular filter plates with precision-machined recessed cavities. These plates are tightly closed together under high pressure by a hydraulic system. The opposing cavities align to form a sequence of independent, sealed filtration units (filter chambers).

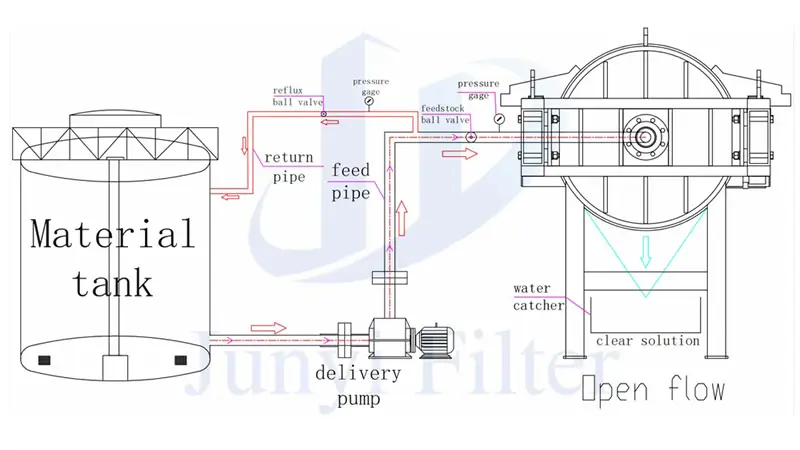

Operational Cycle:
Feeding Stage: A slurry (suspension containing solid particles) is pumped under high pressure into each filter chamber.
Filtration & Separation Stage: Solid particles are retained by the precision filter cloths, gradually building up inside each chamber to form a low-moisture solid "filter cake." Simultaneously, the liquid (called "filtrate") is forced through the cloth and collected via internal drainage channels within the plates.
Cake Discharge Stage: Upon cycle completion, the plate pack opens, and the formed, firm filter cakes are released by gravity or assisted devices, readying the system for the next batch.
In essence, a Circular Chamber Filter Press is a device that utilizes externally applied high pressure to drive efficient, thorough physical solid-liquid separation within sealed spaces formed by circular, recessed filter plates.
Its "Circular Chamber" design integrates reliability, high efficiency, and potential for full automation, making it the preferred solution to replace traditional plate & frame filter presses and a competitive alternative to modern belt presses or centrifuges for many applications.
