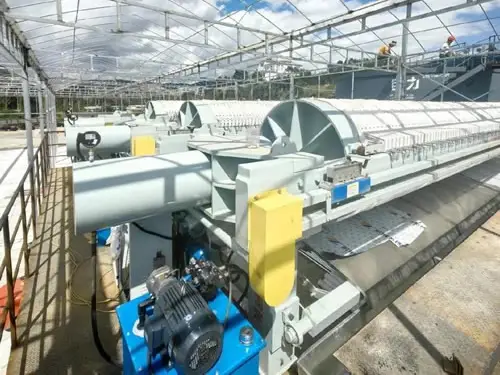

160 sqm Large-Heavy-Duty Circular Chamber Filter Press | For Mining & Metallurgy Continuous Operation, 1250mm Robust PP Plates

160 sqm Large-Heavy-Duty Circular Chamber Filter Press | For Mining & Metallurgy Continuous Operation

Short Description:

Model: JYFPRA160/1250
Filtration Area: 160 square meters
Plate Size: 1250 mm
Total Chamber Volume: 74 Liters
Number of Plates: 104 pcs
Total Weight: Approximately 10490 kg
Motor Power: 7.5 kW
Overall Dimensions (L x W x H): 6720 mm x 1800 mm x 1600 mm
Connection Ports: DN100 and G3/4 inlet and outlet fittings

Send email to us

Product Detail

The JYFPRA160/1250 is a 160 sqm circular chamber filter press designed for large-heavy-duty continuous operations in the mining and metallurgy industries. It is constructed with robust 1250mm polypropylene plates.

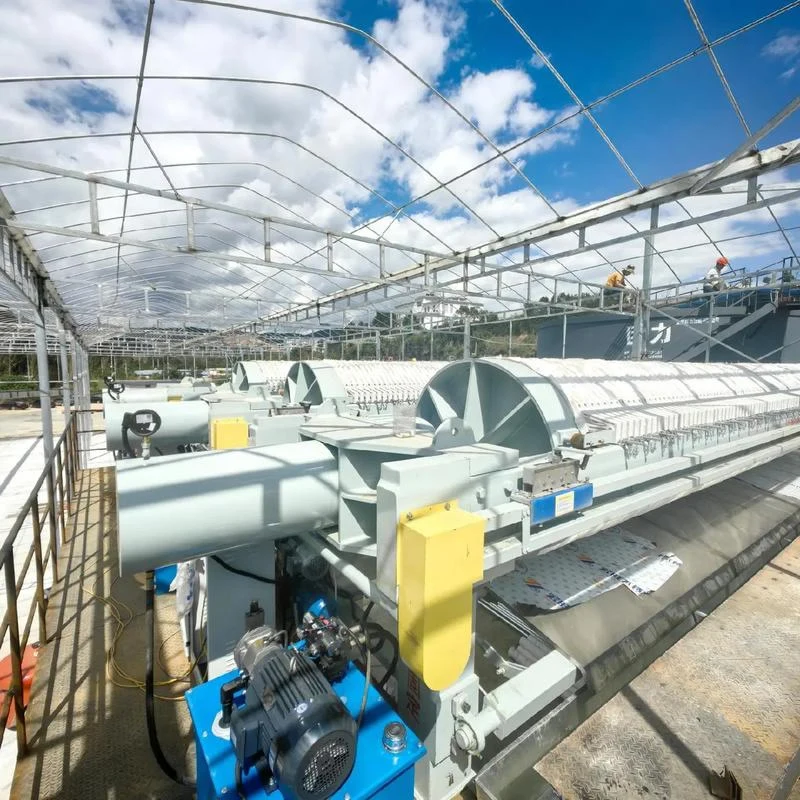

160 sqm Large-Heavy-Duty Circular Chamber Filter Press | For Mining & Metallurgy Continuous Operation, 1250mm Robust PP Plates

160 sqm Large-Heavy-Duty Circular Chamber Filter Press Detailed Specifications & Configuration

Model: JYFPRA160/1250
Filtration Area: 160 square meters
Plate Size: 1250 mm
Total Chamber Volume: 74 Liters
Number of Plates: 104 pcs
Total Weight: Approximately 10490 kg
Motor Power: 7.5 kW
Overall Dimensions (L x W x H): 6720 mm x 1800 mm x 1600 mm
Connection Ports: DN100 and G3/4 inlet and outlet fittings.

Construction & Operation:
This filter press features a circular chamber design with 1250mm plates. The configuration is engineered to sustain high-throughput continuous operation in demanding mineral processing environments. Its design incorporates a large filtration area and robust construction to support extended, high-capacity industrial dewatering cycles.

Circular Chamber Filter Press Structure

Circular Chamber Filter Press Working Principle

Model	Filtration Area (sqm)	Plate Diameter (mm)	Chamber Volume (L)	Plate Qty (pcs)	Weight (Kg)	Motor Power (Kw)	Overall Dimension (mm)			Inlet	Outlet
							Length (L)	Width (W)	Height (H)
JYFPRA30/800 - 30 sqm Mining Filter Press	30	800	377	30	3590	4.0	3780	–	–	DN80	G1/2
JYFPRA40/800-40 sqm Standard Small Filter Press	40		499	40	4554		4300	–	–		G1/2
JYFPRA60/800-60 sqm Enhanced Small Filter Press	60		750	60	5600		5340	1200	1100		G1/2
JYFPRA80/800-80 sqm Heavy-Duty Small Filter Press	80		1160	80	6860		–	–	–		G1/2
JYFPRA60/1000 -60 sqm Medium-Entry Filter Press	60	1000	790	45	4510	5.5	4705	–	–	DN80	G3/6
JYFPRA80/1000 -80 sqm Medium-Standard Filter Press	80		1030	60	4968		5500	1500	1400		G3/6
JYFPRA100/1000 100 sqm Medium-Enhanced Filter Press	100		1320	76	5685		6348	–	–		G3/6
JYFPRA90/1250 90 sqm Large-Standard Filter Press	90	1250	1160	41	7687		4905	–	–	DN100	3/4
JYFPRA130/1250 130 sqm Large-Enhanced Filter Press	130		1700	60	8777	7.5	5950	–	–		3/4
JYFPRA160/1250 160 sqm Large-Heavy-Duty Filter Press	160		2090	74	10490		6720	1800	1600		3/4
JYFPRA200/1250 200 sqm Large-Industrial Filter Press	200		2550	92	13060		7710	–	–		3/4
JYFPRA120/1500 120 sqm Extra-Large Standard Filter Press	120	1500	1550	37	13636		5150	–	–	DN125	G1
JYFPRA180/1500 180 sqm Extra-Large Standard Filter Press	180		2350	57	17134	11.0	6350	2200	1900		G1
JYFPRA230/1500 230 sqm Extra-Large Heavy-Duty Filter Press	230		3000	73	19466		7310	–	–		G1
JYFPRA300/1500 300 sqm Extra-Large Filter Press	300		3900	85	24130
