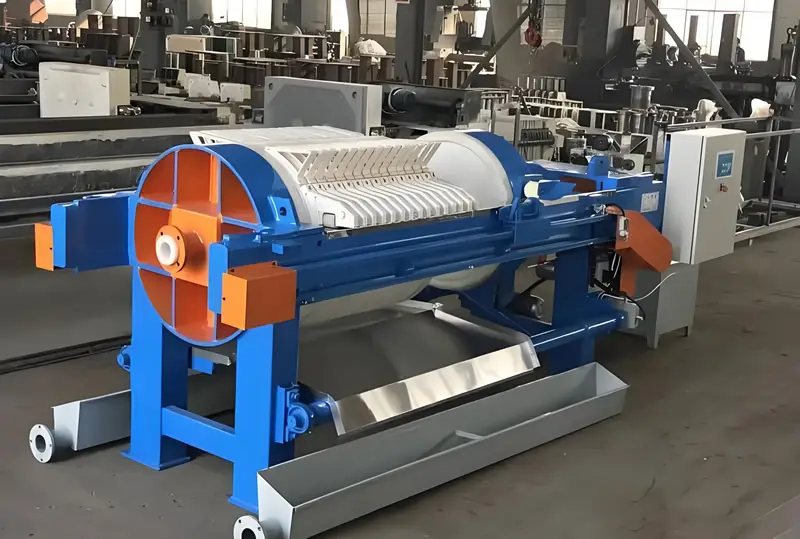

30 sqm Small Bench-Top Pilot Circular Chamber Filter Press | Ultra-Compact for Lab R&amp;D, Polypropylene Plates

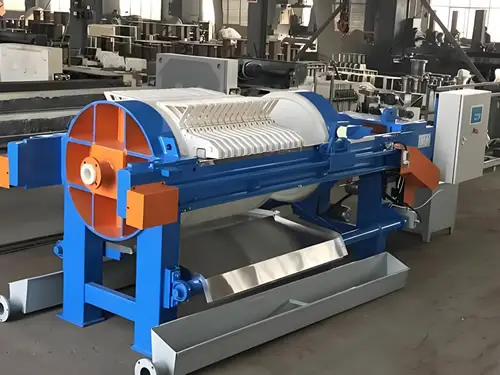

30 sqm Ultra-Compact Circular Chamber Filter Press | For R& Lab Education

Short Description:

Model: JYFPRA30/800
Filtration Area: 30 square meters
Plate Size: 377 mm
Total Chamber Volume: 30 Liters
Number of Plates: 35 pcs
Total Weight: Approximately 3590 kg
Motor Power: 4.0 kW
Overall Dimensions (L x W x H): 3780 mm x 1200 mm x 1100 mm
Connection Ports: DN80 and G1/2 inlet and outlet fittings.

Send email to us

Product Detail

JYFPRA30/800 - Ultra-Compact 30 Sqm Bench-Top Filter Press

The JYFPRA30/800 model is a professionally engineered, ultra-compact circular chamber filter press designed for laboratory R&D and small-batch pilot testing applications. Built with polypropylene plates, it offers a chemically resistant and space-efficient solution for accurate, small-scale filtration trials and process development.

30 sqm Small Bench-Top Pilot Circular Chamber Filter Press | Ultra-Compact for Lab R&D, Polypropylene Plates

30 sqm Ultra-Compact Circular Chamber Filter Press Applications

This unit excels in pharmaceutical R&D, university research laboratories, chemical pilot plants, and environmental testing facilities. Its modular design allows for straightforward scale-up when transitioning from laboratory to production environments.

The circular chamber design provides superior cake formation and washing efficiency compared to traditional rectangular configurations. The 30 sqm filtration area offers sufficient capacity for meaningful testing while maintaining manageable dimensions for laboratory installation.

30 sqm Ultra-Compact Circular Chamber Filter Press |Detailed Specifications & Configuration

    Model: JYFPRA30/800
    Filtration Area: 30 square meters
    Plate Size: 377 mm
    Total Chamber Volume: 30 Liters
    Number of Plates: 35 pcs
    Total Weight: Approximately 3590 kg
    Motor Power: 4.0 kW
    Overall Dimensions (L x W x H): 3780 mm x 1200 mm x 1100 mm
    Connection Ports: DN80 and G1/2 inlet and outlet fittings.

Circular Chamber Filter Press Structure

Circular Chamber Filter Press Working Principle

Model	Filtration Area (sqm)	Plate Diameter (mm)	Chamber Volume (L)	Plate Qty (pcs)	Weight (Kg)	Motor Power (Kw)	Overall Dimension (mm)			Inlet	Outlet
							Length (L)	Width (W)	Height (H)
JYFPRA30/800 - 30 sqm Mining Filter Press	30	800	377	30	3590	4.0	3780	–	–	DN80	G1/2
JYFPRA40/800-40 sqm Standard Small Filter Press	40		499	40	4554		4300	–	–		G1/2
JYFPRA60/800-60 sqm Enhanced Small Filter Press	60		750	60	5600		5340	1200	1100		G1/2
JYFPRA80/800-80 sqm Heavy-Duty Small Filter Press	80		1160	80	6860		–	–	–		G1/2
JYFPRA60/1000 -60 sqm Medium-Entry Filter Press	60	1000	790	45	4510	5.5	4705	–	–	DN80	G3/6
JYFPRA80/1000 -80 sqm Medium-Standard Filter Press	80		1030	60	4968		5500	1500	1400		G3/6
JYFPRA100/1000 100 sqm Medium-Enhanced Filter Press	100		1320	76	5685		6348	–	–		G3/6
JYFPRA90/1250 90 sqm Large-Standard Filter Press	90	1250	1160	41	7687		4905	–	–	DN100	3/4
JYFPRA130/1250 130 sqm Large-Enhanced Filter Press	130		1700	60	8777	7.5	5950	–	–		3/4
JYFPRA160/1250 160 sqm Large-Heavy-Duty Filter Press	160		2090	74	10490		6720	1800	1600		3/4
JYFPRA200/1250 200 sqm Large-Industrial Filter Press	200		2550	92	13060		7710	–	–		3/4
JYFPRA120/1500 120 sqm Extra-Large Standard Filter Press	120	1500	1550	37	13636		5150	–	–	DN125	G1
JYFPRA180/1500 180 sqm Extra-Large Standard Filter Press	180		2350	57	17134	11.0	6350	2200	1900		G1
JYFPRA230/1500 230 sqm Extra-Large Heavy-Duty Filter Press	230		3000	73	19466		7310	–	–		G1
JYFPRA300/1500 300 sqm Extra-Large Filter Press	300		3900	85	24130
