Model: DFP660/870-60
Filter Area: 60 m²
Plate Size: 870 × 870 mm
Chamber Volume: 955 L
Number of Plates: 45
Filtration Pressure: 1.0–1.6 MPa
Motor Power: 5.5 kW
Machine Weight: 4,597 kg
Overall Dimensions (L×W×H): 5,310 × 1,350 × 1,230 mm

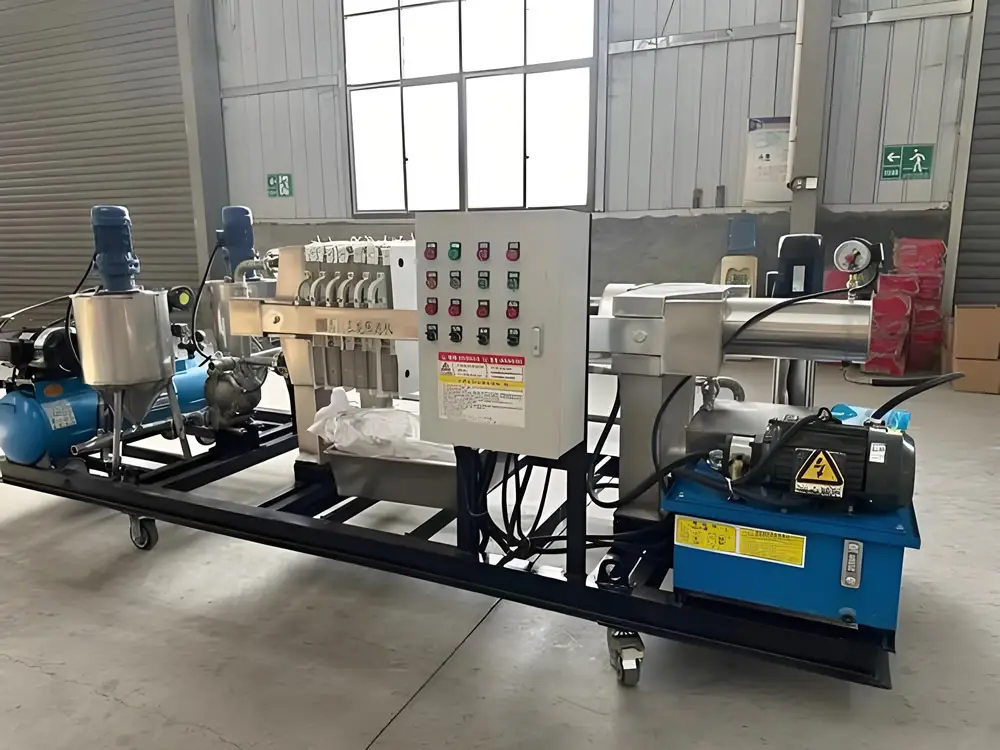

The DFP660/870-60 Industrial Pilot Diaphragm Filter Press is
specifically engineered for demanding laboratory and pilot-scale testing
involving corrosive, abrasive, or chemically aggressive slurries.
Featuring a durable TPE (Thermoplastic Elastomer) membrane and fully
automatic operation, this system provides reliable, repeatable
filtration performance for research, quality control, and process
development in harsh chemical environments.
Model: DFP660/870-60
Filter Area: 60 m²
Plate Size: 870 × 870 mm
Chamber Volume: 955 L
Number of Plates: 45
Filtration Pressure: 1.0–1.6 MPa
Motor Power: 5.5 kW
Machine Weight: 4,597 kg
Overall Dimensions (L×W×H): 5,310 × 1,350 × 1,230 mm
Frame Structure: Heavy-duty steel frame construction providing exceptional stability, vibration resistance, and precise alignment for all operating components.
Compression System: High-precision hydraulic compression system delivering uniform, high-pressure sealing force across the entire filter plate pack, ensuring leak-free operation.
Filter Plates & Cloths: Specially engineered polypropylene (PP) plates with integrated TPE (Thermoplastic Elastomer) diaphragms, paired with high-efficiency filter cloths for optimal solid-liquid separation.
Control System: Fully automated PLC-based electrical control system enabling precise management of the entire filtration cycle, including feeding, squeezing, drying, and cake discharge.
Monitoring Instrumentation: Integrated digital pressure gauges, temperature sensors, and flow meters providing real-time process monitoring, data logging, and safety interlock functionality.
