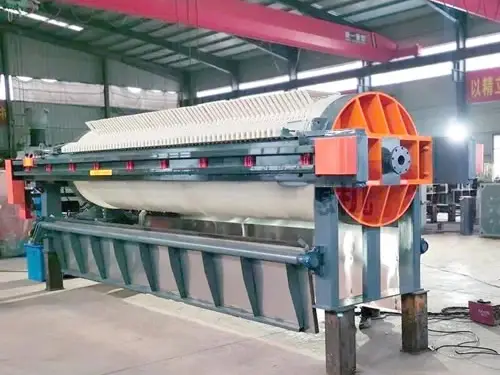

80 sqm Heavy-Duty Small Mining Pilot Circular Chamber Filter Press | For Pilot Plant & Metallurgy Testing, Reinforced PP Plates

80 sqm Heavy-Duty Small Circular Chamber Filter Press | For Mining & Metallurgy Pilot Plants

Short Description:

Model: JYFPRA80/800
Filtration Area: 80 square meters
Plate Size: 1160 mm
Total Chamber Volume: 80 Liters
Number of Plates: 68 pcs
Total Weight: Approximately 6860 kg
Motor Power: 40 kW
Overall Dimensions (L x W x H): 5340 mm x 1200 mm x 1100 mm
Connection Ports: DN80 and G1/2" inlet and outlet fittings.

Send email to us

Product Detail

The JYFPRA80/800 is an 80 sqm circular chamber filter press designed for heavy-duty pilot-scale applications in mining and metallurgical testing environments. It is constructed with reinforced polypropylene plates.

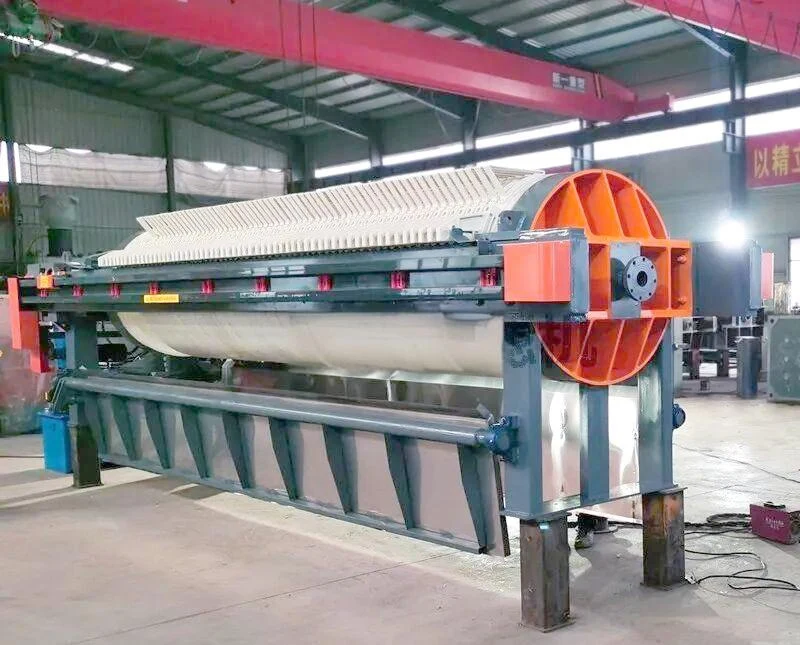

80 sqm Heavy-Duty Small Mining Pilot Circular Chamber Filter Press | For Pilot Plant & Metallurgy Testing, Reinforced PP Plates

80 sqm Heavy-Duty Small Circular Chamber Filter Press Detailed Specifications & Configuration

    Model: JYFPRA80/800
    Filtration Area: 80 square meters
    Plate Size: 1160 mm
    Total Chamber Volume: 80 Liters
    Number of Plates: 68 pcs
    Total Weight: Approximately 6860 kg
    Motor Power: 40 kW
    Overall Dimensions (L x W x H): 5340 mm x 1200 mm x 1100 mm
    Connection Ports: DN80 and G1/2" inlet and outlet fittings.

80 sqm Heavy-Duty Small Circular Chamber Filter Press Construction & Operation

This filter press features a circular chamber design with 1160mm plates. The configuration is engineered for extended batch processing in demanding pilot plant conditions. Its overall dimensions are suited for installation in industrial testing areas with specific spatial requirements.

Circular Chamber Filter Press Structure

Circular Chamber Filter Press Working Principle

Model	Filtration Area (sqm)	Plate Diameter (mm)	Chamber Volume (L)	Plate Qty (pcs)	Weight (Kg)	Motor Power (Kw)	Overall Dimension (mm)			Inlet	Outlet
							Length (L)	Width (W)	Height (H)
JYFPRA30/800 - 30 sqm Mining Filter Press	30	800	377	30	3590	4.0	3780	–	–	DN80	G1/2
JYFPRA40/800-40 sqm Standard Small Filter Press	40		499	40	4554		4300	–	–		G1/2
JYFPRA60/800-60 sqm Enhanced Small Filter Press	60		750	60	5600		5340	1200	1100		G1/2
JYFPRA80/800-80 sqm Heavy-Duty Small Filter Press	80		1160	80	6860		–	–	–		G1/2
JYFPRA60/1000 -60 sqm Medium-Entry Filter Press	60	1000	790	45	4510	5.5	4705	–	–	DN80	G3/6
JYFPRA80/1000 -80 sqm Medium-Standard Filter Press	80		1030	60	4968		5500	1500	1400		G3/6
JYFPRA100/1000 100 sqm Medium-Enhanced Filter Press	100		1320	76	5685		6348	–	–		G3/6
JYFPRA90/1250 90 sqm Large-Standard Filter Press	90	1250	1160	41	7687		4905	–	–	DN100	3/4
JYFPRA130/1250 130 sqm Large-Enhanced Filter Press	130		1700	60	8777	7.5	5950	–	–		3/4
JYFPRA160/1250 160 sqm Large-Heavy-Duty Filter Press	160		2090	74	10490		6720	1800	1600		3/4
JYFPRA200/1250 200 sqm Large-Industrial Filter Press	200		2550	92	13060		7710	–	–		3/4
JYFPRA120/1500 120 sqm Extra-Large Standard Filter Press	120	1500	1550	37	13636		5150	–	–	DN125	G1
JYFPRA180/1500 180 sqm Extra-Large Standard Filter Press	180		2350	57	17134	11.0	6350	2200	1900		G1
JYFPRA230/1500 230 sqm Extra-Large Heavy-Duty Filter Press	230		3000	73	19466		7310	–	–		G1
JYFPRA300/1500 300 sqm Extra-Large Filter Press	300		3900	85	24130
