Model: JYFPRA90/1250
Filtration Area: 90 square meters
Plate Size: 1250 mm
Total Chamber Volume: 41 Liters
Number of Plates: 76 pcs
Total Weight: Approximately 7687 kg
Motor Power: 7.5 kW
Overall Dimensions (L x W x H): 4905 mm x 1800 mm x 1600 mm
Connection Ports: DN100 and G3/4 inlet and outlet fittings.

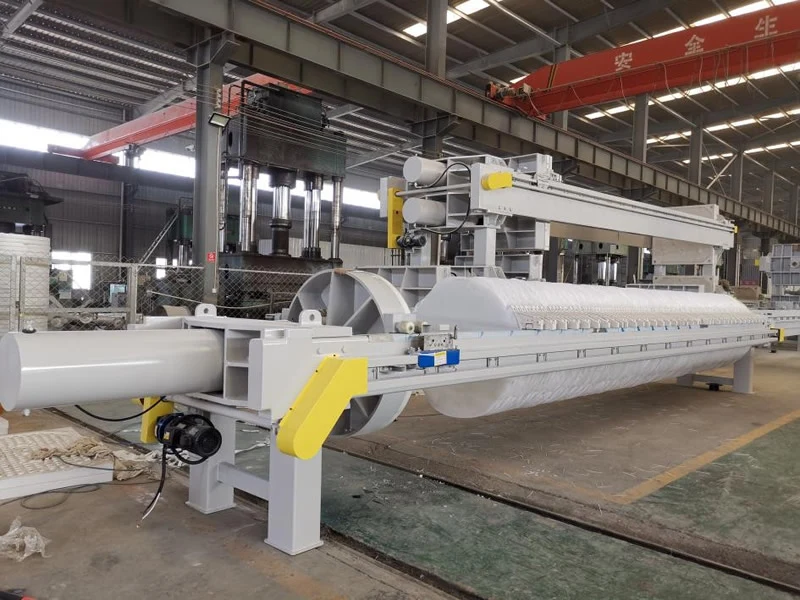

The JYFPRA90/1250 is a 90 sqm circular chamber filter press designed for large-standard applications in municipal sludge treatment and chemical production plants. It is constructed with 1250mm polypropylene plates.
90 sqm Large-Standard Circular Chamber Filter Press Detailed Specifications & Configuration:
Model: JYFPRA90/1250
Filtration Area: 90 square meters
Plate Size: 1250 mm
Total Chamber Volume: 41 Liters
Number of Plates: 76 pcs
Total Weight: Approximately 7687 kg
Motor Power: 7.5 kW
Overall Dimensions (L x W x H): 4905 mm x 1800 mm x 1600 mm
Connection Ports: DN100 and G3/4 inlet and outlet fittings.
Construction & Operation:
This filter press features a circular chamber design with 1250mm plates. The configuration is engineered for robust operation in municipal and chemical industrial settings. Its overall dimensions and connection ports are designed to integrate with standard industrial piping systems for continuous production.90 sqm Large-Standard Circular Chamber Filter Press
