Model 870 large-scale recessed chamber filter press with 870mm plates and full PLC automation. Heavy-duty hydraulic system designed for high-volume applications in mining, municipal wastewater treatment, and large-scale chemical processing.
Model 870 Large-Scale Recessed Chamber Filter Press: Industrial-Grade Filtration Capacity
Engineered for High-Volume Industrial Processing

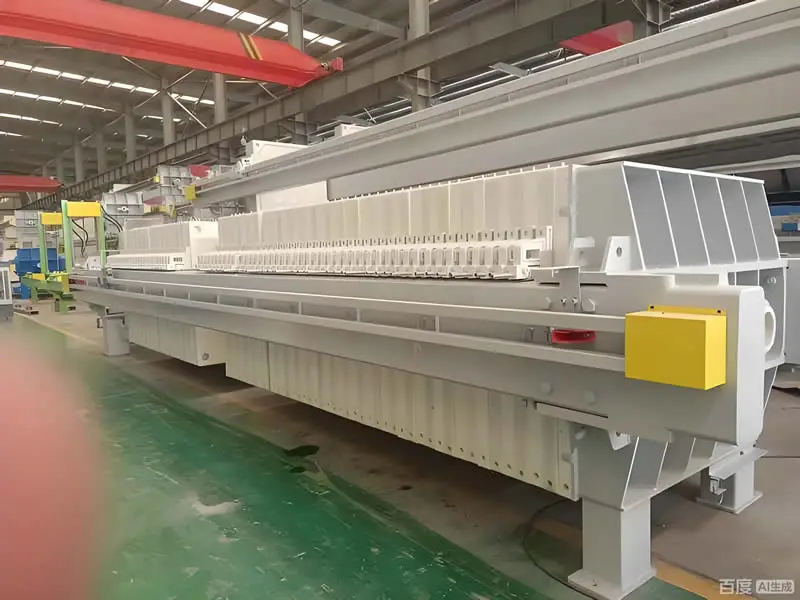

The
Model 870 represents professional-grade, large-scale filtration
capability. Featuring 870mm recessed chamber plates and comprehensive
PLC automation, this heavy-duty hydraulic filter press is engineered
specifically for operations requiring substantial throughput, continuous
operation, and reliable performance in demanding industrial
environments.
Model | Plate Size (mm) | Filtration Area (m2) | Qty of Plate (PCS) | Weight (KG) |
XAMY4/450-30 |
| 4 | 9 | 830 |
XAMY8/450-30 | 8 | 19 | 920 | |
XAMY10/450-30 | 10 | 24 | 9800 | |
XAMY12/450-30 | 12 | 29 | 1010 | |
XAMY16/450-30 | 16 | 36 | 1120 | |
XAMY15/630-U |
630X630 | 15 | 18 | 1710 |
XAMY20/630-U | 20 | 24 | 1960 | |
XAMY30/630-U | 30 | 37 | 2315 | |
XAMY40/630-U | 40 | 49 | 2588 | |
XAMY30/870-30 |
| 30 | 23 | 2380 |
XAMY40/870-30 | 40 | 30 | 2725 | |
XAMY50/870-30 | 50 | 80 | 3118 | |
XAMY60/870-30 | 60 | 46 | 3512 | |
XAMY80/870-30 | 80 | 62 | 4261 | |
XAMY50/1000-30 |
1000X1000 | 50 | 28 | 3960 |
XAMY60/1000-30 | 60 | 34 | 4510 | |
XAMY70/1000-30 | 70 | 46 | 4968 | |
XAMY100/1000-30 | 100 | 57 | 5685 | |
XAMY120/1000-30 | 120 | 69 | 6320 |
