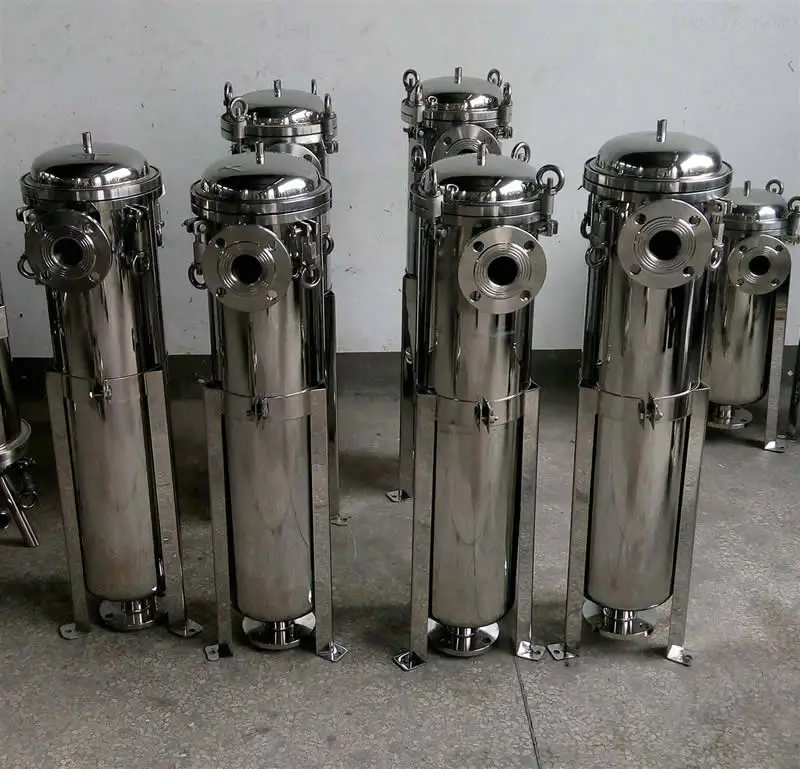

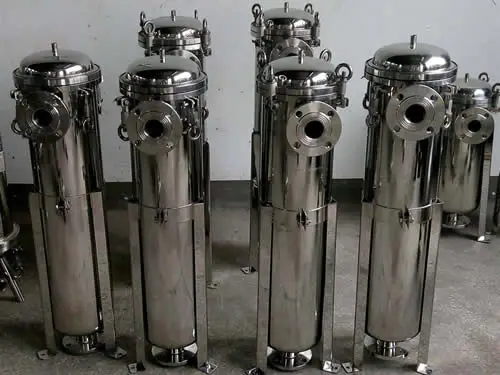

Robust DN40 single bag filter housing with 0.25㎡ area, handling flows up to 20 m³/h. Ideal for industrial process water, coolant systems, and chemical filtration. Durable construction for continuous operation.
Core Specifications & Advantages
Balanced Performance: The 0.25㎡ filter bag provides an optimal balance between dirt-holding capacity and housing size, offering longer service cycles and reduced maintenance for flows around 20 m³/h.
Industrial-Grade Construction: Typically built from 304 or 316L stainless steel with sturdy flanged connections (DN40 PN16/ANSI 150), ensuring durability and leak-free performance in plant conditions.
Versatile Process Application: Perfect for filtering industrial process water, cooling tower loops, cutting coolants, pre-treatment for RO systems, and various chemical process streams.
Single-Bag Simplicity & Economy: Maintains the cost-effectiveness and easy maintenance of a single-bag design, while offering significantly higher capacity than smaller models.
Need to protect your process at a 20 m³/h flow rate? Contact us for sizing recommendations and pricing on this industrial-grade DN40 housing.
Filtration area(㎡) | Diameter of inlet/outlet (mm) | Setting of working pressure | Max flow speed (viscosity 1m㎡/s) | ||
JYSF-3# |
| 0.09 | Normal bag filter≤0.6MPA (Designed pressure 1.0MPA) | 5m³/h | |
JYSF-4# | 0.12 | 8m³/h | |||
JYSF-1# | 0.25 | 20m³/h | |||
JYSF-2# | 0.5 | 40m³/h | |||
JYSF-5# | 1 | 80m³/h | |||
