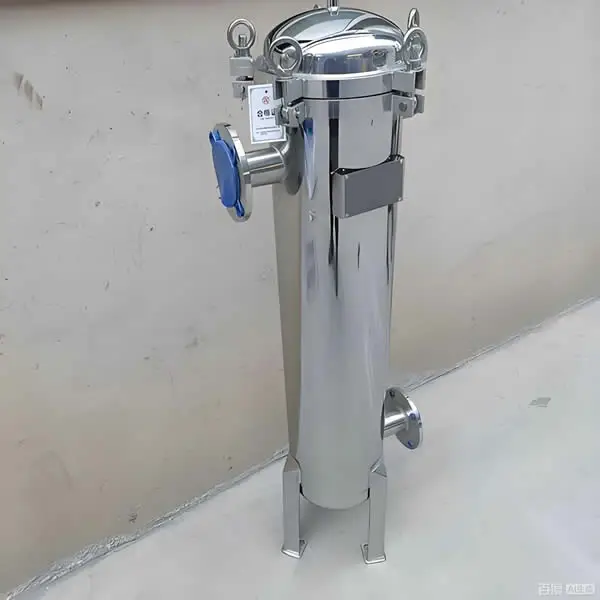

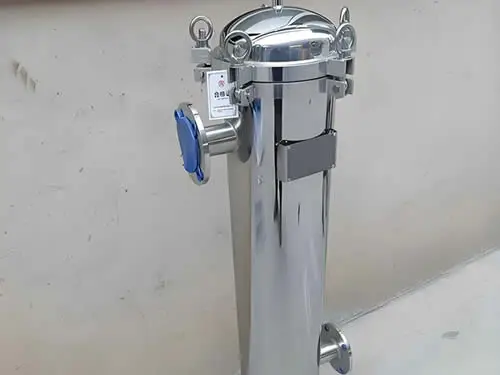

Heavy-duty DN65 single bag filter housing with 1㎡ area, designed for high-volume filtration up to 80 m³/h. Ideal for industrial water treatment, large coolant systems, and process applications requiring robust, continuous operation.
Built for Continuous, Large-Scale Filtration
Our DN65 single bag filter housing is engineered to meet the challenges of high-volume industrial filtration. With an expansive 1.0㎡ filtration area and a substantial flow capacity of 80 m³/h, this robust housing is designed for continuous duty in applications where downtime is costly and reliability is paramount. It delivers exceptional solids removal efficiency while maximizing service intervals.
Centralized Coolant Filtration Systems: Designed for large-scale machining workshops or stamping lines.
Industrial Water Pretreatment: Functions as the core filtration unit for main plant intake or process water recirculation.
Primary Wastewater Treatment: Performs advanced solids removal from pre-treated effluent streams.
Chemical & Petrochemical Processing: Provides guard filtration for high-flow-rate process media.
Connection Size: DN65 Flanged
Filtration Area: 1.0 m²
Maximum Flow Rate: 80 m³/h (at 1 mm²/s viscosity)
Design Pressure: 10 bar (150 psi) standard (higher ratings available)
Housing Material: 304/316L Stainless Steel (Carbon Steel with Lining optional)
Filter Bag Configuration: 1 (High-Capacity Single Bag Design)
Filtration area(㎡) | Diameter of inlet/outlet (mm) | Setting of working pressure | Max flow speed (viscosity 1m㎡/s) | ||
JYSF-3# |
| 0.09 | Normal bag filter≤0.6MPA (Designed pressure 1.0MPA) | 5m³/h | |
JYSF-4# | 0.12 | 8m³/h | |||
JYSF-1# | 0.25 | 20m³/h | |||
JYSF-2# | 0.5 | 40m³/h | |||
JYSF-5# | 1 | 80m³/h | |||
FAQ
Q: Are you manufacturer?
A: Yes. We are experienced manufacturer of filter equipment. Take a look at our factory and machinery
Q:What products you provide?
A: We produce more than 200 different models of the filter. The main products are the Press Filter/Bag Filter Housing/Automatic self cleaning filter/Basket filter/Magnetic filter/ Candle filter/Leaf filter/Cartridge filter housing/Filter Plate/Filter Cloth/ Filter Cartridge /Filter Bag, also matched tanks, conveyors, etc.
Q: How to select the type you needed?
A: We will ask you some information: solid liquid kind, usage, flow rate, solid content
percentage, working temperature & pressure, etc. We have
professional technical team which will work together with our sales to
help you choose the suitable machine for you.
Q.Is it easy to operate for the new user ?
A: Yes. We offer you manual book and operating video. When you have any questions during using, we will answer you within 24 hours. For large projects, we can also send our engineers to your site for commissioning and training.
Q: What's MOQ?
A: 1 PCS.
Q: Do you accept OEM?
A: Yes.
Q:What's the payment terms ?
A: T/T, Western Union, L/C , Alibaba trade order or others. Generally 50% in advance, 50% before shipping.
Q:Quality Warranty.
A:12 months after the installation and commission or 18 months after it has been delivered to the site of the customer.
