Type: Basket Strainer (Simplex)
Nominal Diameter: DN50 (2")
Body Material: SS316L
Screen Material: SS316L
Filtration Rating: 100 Mesh (150 μm)
Connection Type: Flanged
Flange Standard: ANSI / DIN / JIS
Working Pressure: PN16
Working Temperature: -20°C ~ 180°C

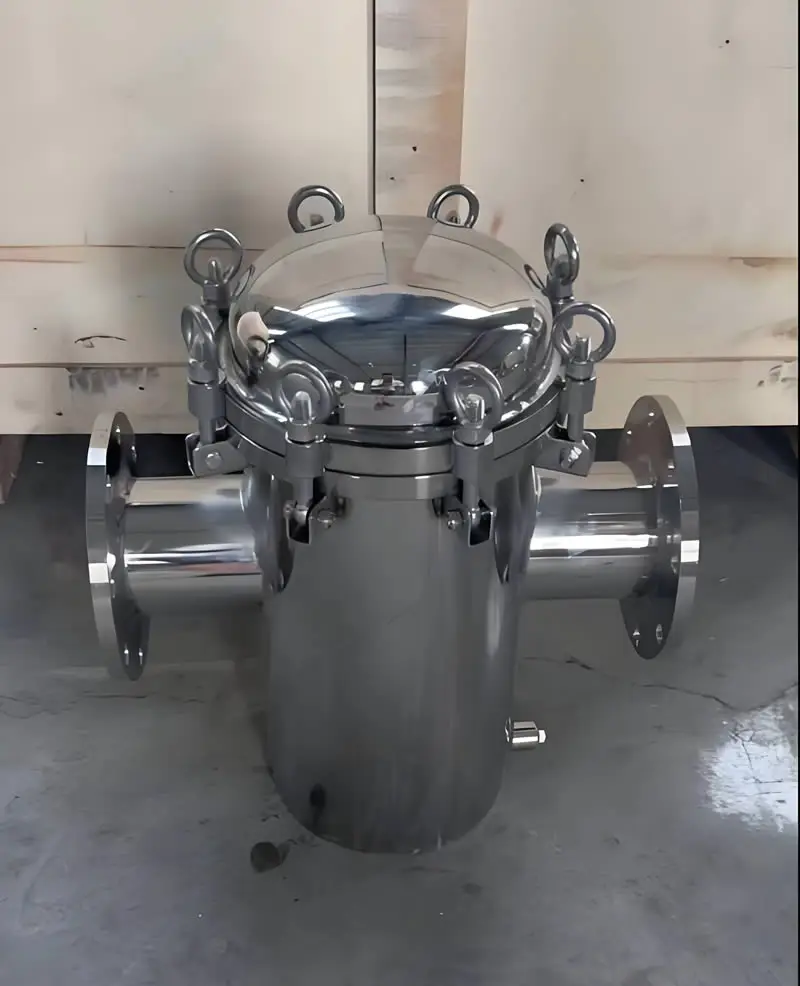

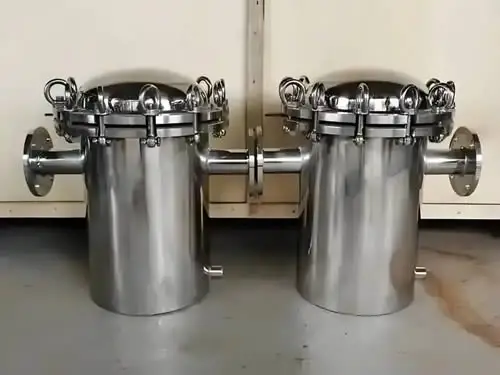

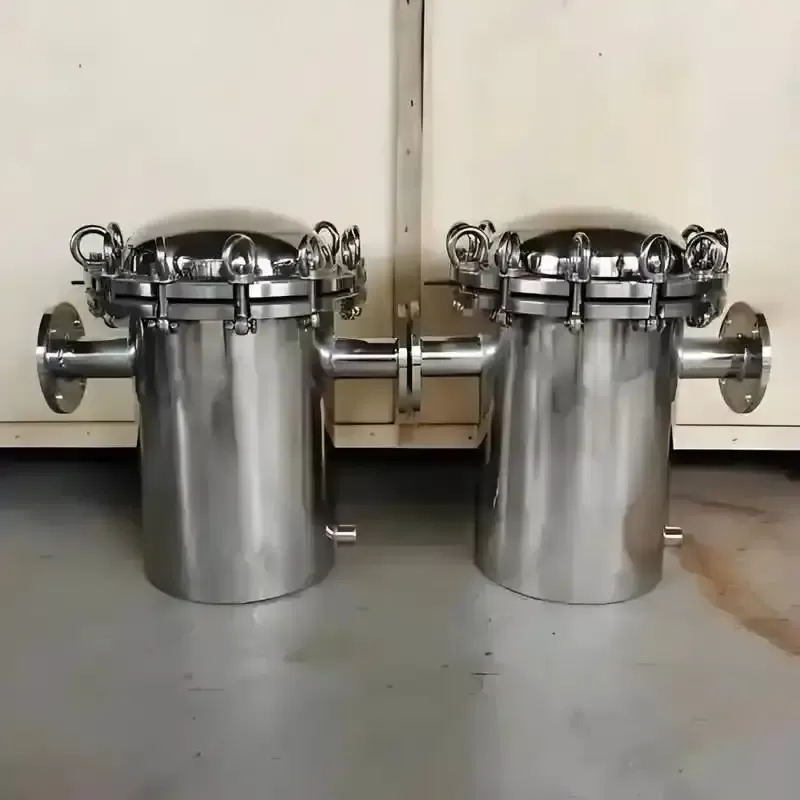

A DN50 (2") food grade stainless steel basket strainer is ideal for sanitary food and beverage pipeline systems, ensuring hygiene and safety. NSF-certified materials provide additional assurance for compliance with food industry standards.
For high-temperature pipeline conditions (above 80°C), basket strainer models with cooling fins are recommended to reduce heat impact and prevent deformation of plastic components.
When handling high-viscosity fluids (such as honey), selecting a basket strainer with a larger filtration area helps maintain smooth flow and minimize the risk of clogging.
For corrosive media such as seawater or chloride-containing liquids, a 316L stainless steel basket strainer is recommended to achieve enhanced corrosion resistance and longer service life.
| Parameter | Specification | Parameter | Specification |
|---|---|---|---|
| Model | JYBF-50 | Face-to-Face Length (L) | 280 mm |
| Type | Basket Strainer (Simplex) | Overall Height (H) | 300 mm |
| Nominal Diameter | DN50 (2") | Installation Height (H1) | 170 mm |
| Body Material | SS316L | Body Diameter (D0) | 150 mm |
| Screen Material | SS316L | Drain Connection | 3/4" |
| Filtration Rating | 100 Mesh (150 μm) | Working Pressure | PN16 |
| Connection Type | Flanged | Working Temperature | -20°C ~ 180°C |
| Flange Standard | ANSI / DIN / JIS |
When cleaning is required, follow these steps:
1、Unscrew the drain plug at the bottom of the main pipeline to fully drain the fluid.
2、Remove the flange cover.
3、Clean the basket strainer thoroughly.
4、Reassemble the flange cover and ensure all components are securely in place before resuming operation.

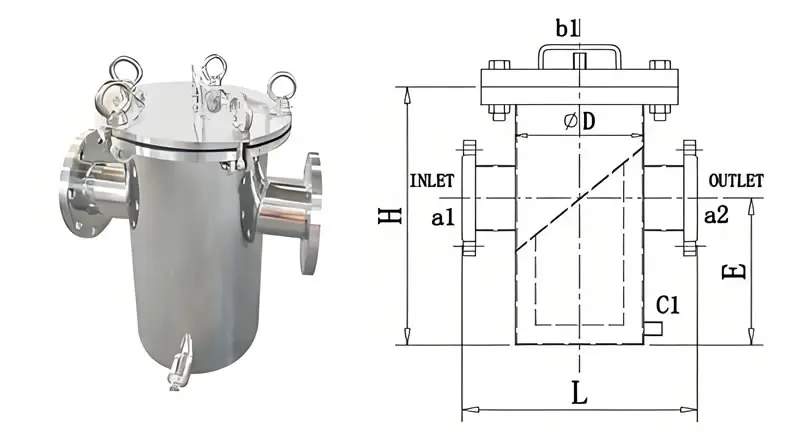

Stainless Steel Basket Strainer Structural Diagram

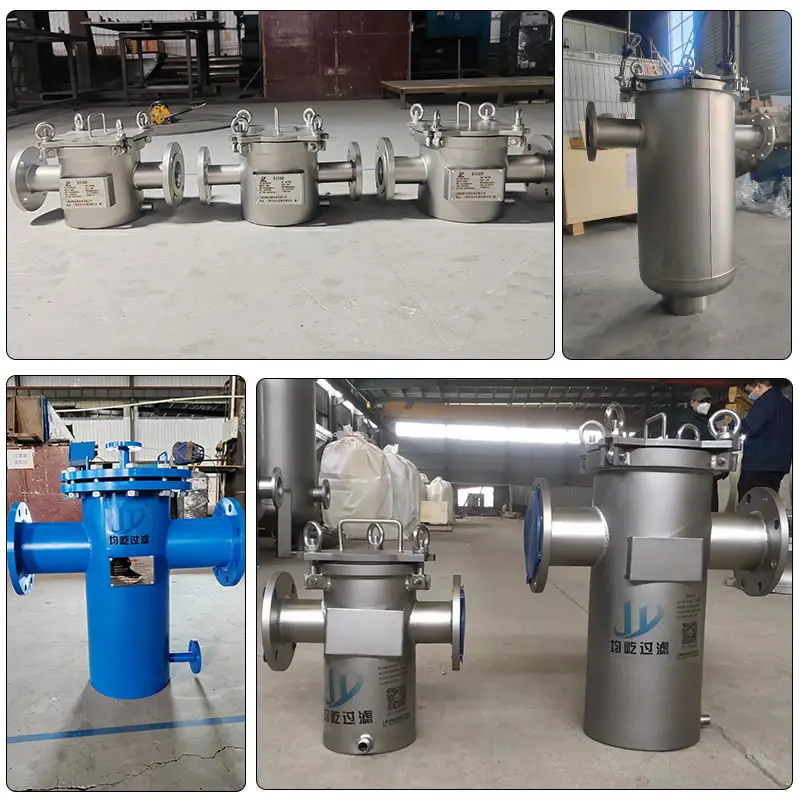

Collection of stainless steel simplex basket strainers of various models for pipeline filtration applications
Stainless steel basket strainer screen for pipeline filtration applications
