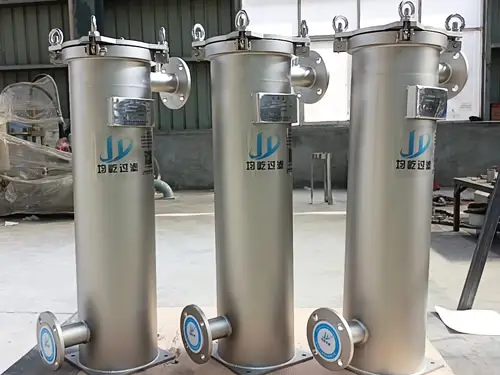

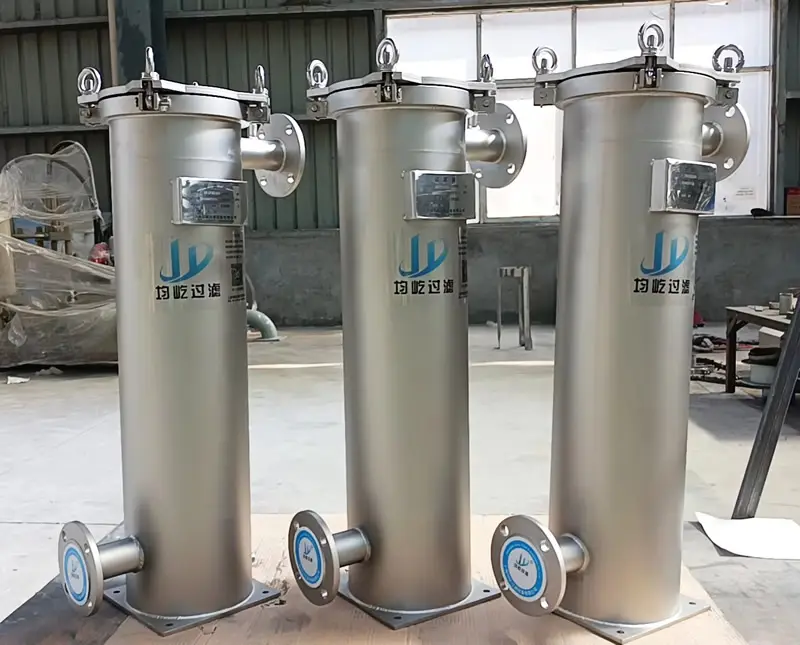

Sanitary stainless steel single bag filter designed for beverage & dairy industries. Ideal for milk, nut milk, and liquid food filtration.
The industrial-grade stainless steel single-bag filter is specifically designed for the beverage and dairy industries, offering an efficient and hygienic liquid filtration solution. The equipment features a fully stainless steel structure that meets food-grade hygiene standards, making it particularly suitable for fine filtration of milk, plant-based milk (nut milk), and other liquid foods.
Food grade hygiene design: 304/316 stainless steel material, surface polished treatment, in compliance with food industry hygiene standards
Efficient filtration: Single bag design, optional filtration accuracy, processing flow rate up to XX tons/hour (please provide specific parameters)

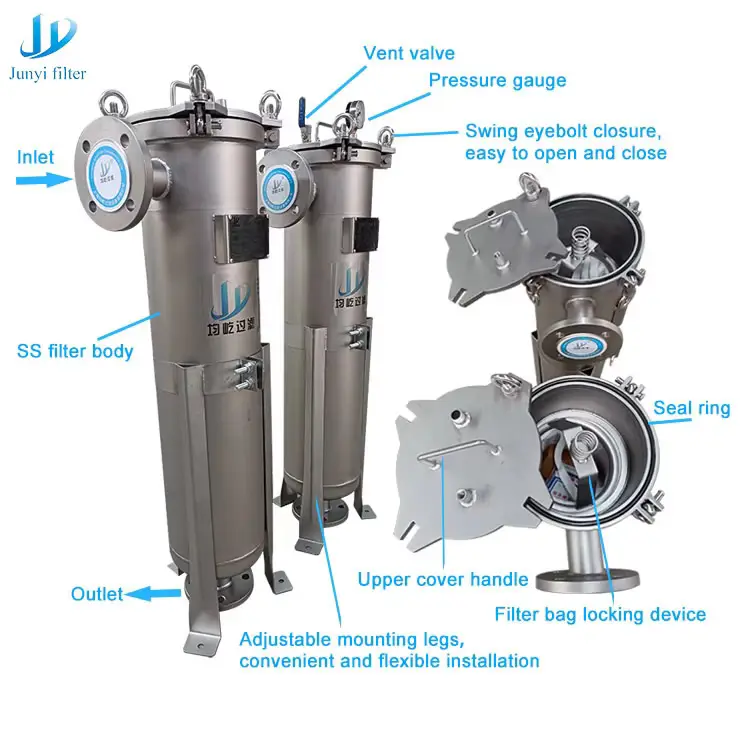

Easy to operate: Quick opening structure, quick and convenient bag replacement, reducing downtime
Multi functional application: applicable to all kinds of liquid food such as milk, soybean milk, fruit juice, beverage, etc
Reliable sealing: Special sealing design ensures zero leakage during the production process
Model | Area （㎡） | InIet/Outlet(mm) | Working Pressure | Max. Flow rate(1 centipoise viscosity) | |
JYSF--3# |
Single Bag Filter | 0.09 | DN 25 |
<=0.6 MPA(Design Pressure:1.0MPA) | 5m³/h |
JYSF--4# | 0.12 | DN 25 | 8m³/h | ||
JYSF--1# | 0.25 | DN 40 | 20m³/h | ||
JYSF--2# | 0.5 | DN 50 | 40m³/h | ||
JYSF--9# | 1 | DN 65 | 80m³/h | ||
