Model: JYFPRA60/800
Filtration Area: 60 square meters
Plate Diameter: 750 mm
Total Chamber Volume: 60 Liters
Number of Plates: 56 pcs
Total Weight: Approximately 5340 kg
Motor Power: 12 kW
Overall Dimensions (L x W x H): 5600 mm x 1200 mm x 1100 mm (based on common layout interpretation of provided data)
Connection Ports: Standard G1/2" inlet and outlet fittings.

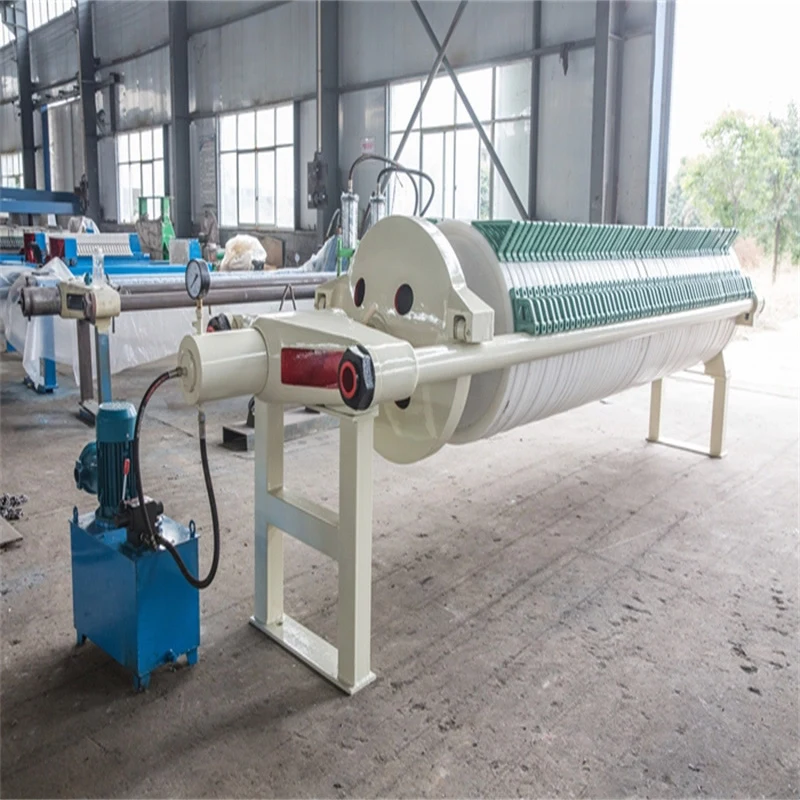

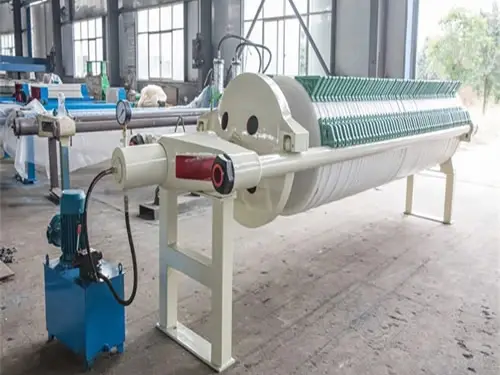

JYFPRA60/800 - Enhanced 60 Sqm Small Filter Press
The JYFPRA60/800 model is a professionally engineered, small-scale circular chamber filter press designed for demanding pilot and industrial testing applications, particularly in sludge dewatering and wastewater process evaluation. Built with high-strength polypropylene plates, it offers a robust and chemically resistant solution for accurate, scalable filtration trials.
Model: JYFPRA60/800
Filtration Area: 60 square meters
Plate Diameter: 750 mm
Total Chamber Volume: 60 Liters
Number of Plates: 56 pcs
Total Weight: Approximately 5340 kg
Motor Power: 12 kW
Overall Dimensions (L x W x H): 5600 mm x 1200 mm x 1100 mm (based on common layout interpretation of provided data)
Connection Ports: Standard G1/2" inlet and outlet fittings.

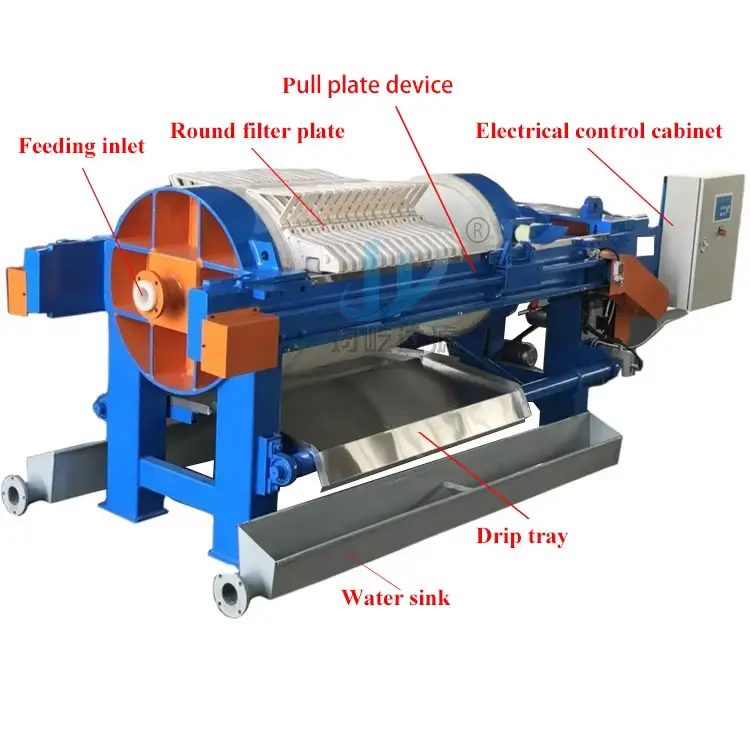

Construction & Operation:
This
filter press features a circular chamber design with 750mm diameter
plates, providing a reliable seal and efficient filtration surface. The
substantial chamber volume allows for processing larger sample batches
in a single cycle, making it ideal for extended testing scenarios. Its
compact overall footprint (Length: ~5.6m) is designed to fit within
limited pilot plant or laboratory floor space, while the robust
construction ensures stable operation under working pressures suitable
for sludge concentration.
